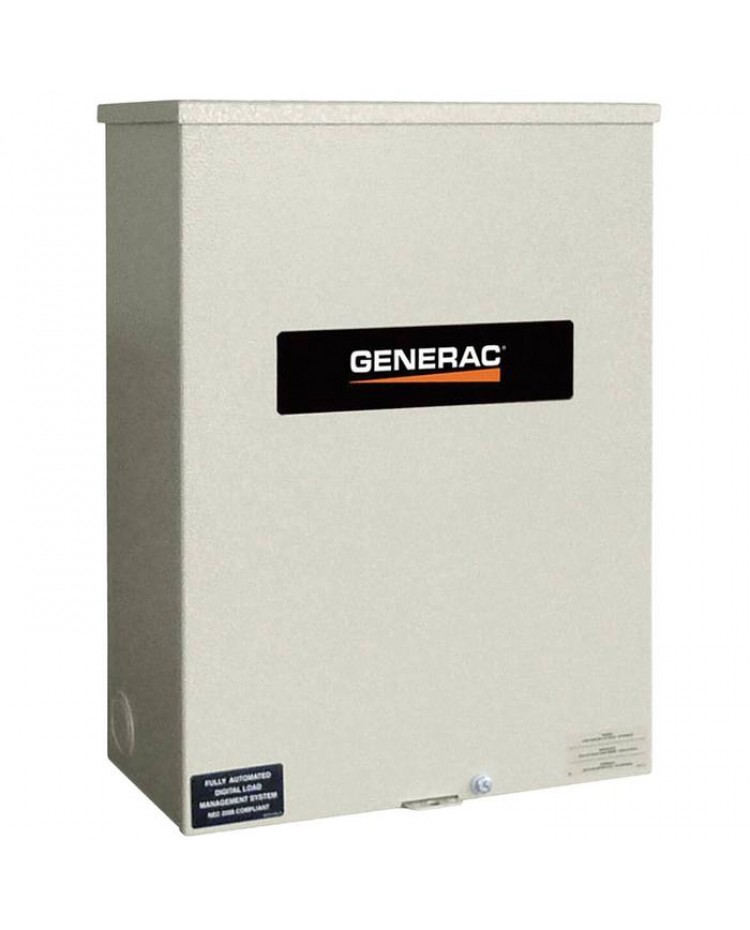

Generac RTSN200K3 Guardian 200-Amp 3-Phase Automatic Transfer Switch (277/480V)
Features
- 3-Phase Automatic Transfer switch
- Fully Automatic Operation
- Standard Installation
- May require a sub-panel or disconnect for serviceability
- Nema 3R Aluminum Enclosure
- For Use With Generac Generators Only
- UL Listed 2200
What's in The Box
- 277/480-Volt 200-Amp 3-Phase Automatic Transfer Switch - RTSN200K3
- Owner's Manual
Warranty
- 1-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed
Specifications
Model | RTSN200K3 |
Brand | Generac |
Voltage | 277/480 Three-Phase |
Frequency | 60 Hertz |
Rated Amps | 200 Amps |
ATS Poles | 3 Poles |
Max Generator Input | 200 Amps |
Max Utility Input | 200 Amps |
Enclosure | NEMA 3R |
UL Listed | Yes |
Weight (lbs.) | 105 (47.63 kgs) |
Dimensions (LxWxH)(in.) | 48 x 30 x 12 (121.92 x 76.20 x 30.48 cm) |
